ZWHOPES® Electro Hydraulic Servo Cnc Press Brake

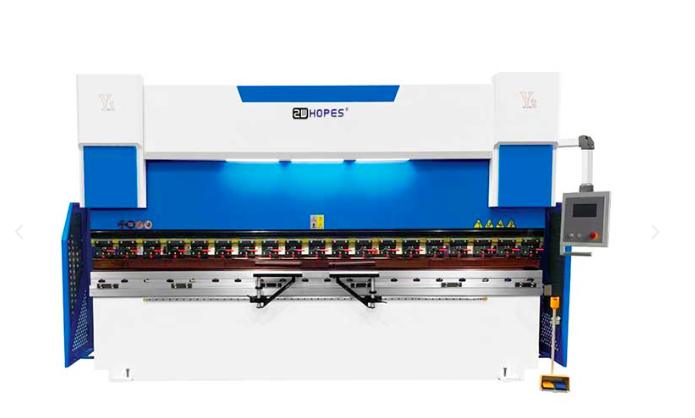

ZWHOPES® EH2020 Series Press Brake is a new CNC bending machine launched by ZWHOPES Group in 2020, and is suitable for manufacturers with high precision and cost performance requirements. ZWHOPES® 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.
- The machine frame integrated welding.
- The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
- Internal stress lamination by tempering
- Shot blast to remove rust and anti-rust treatment.
Scientific design
- Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
- Possibility to add options and upgrades on the configuration, at later stage.

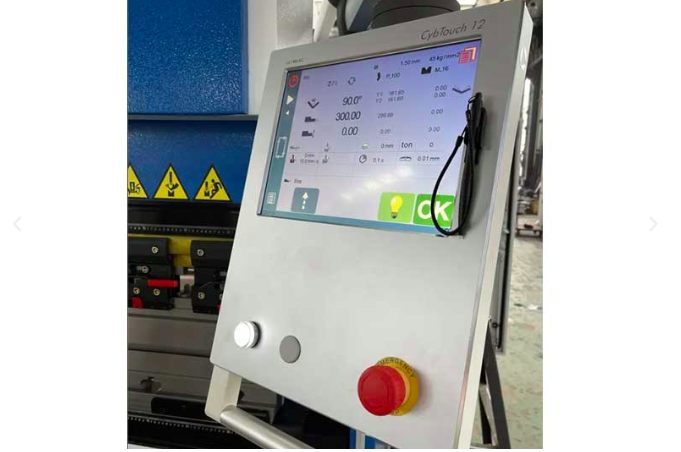

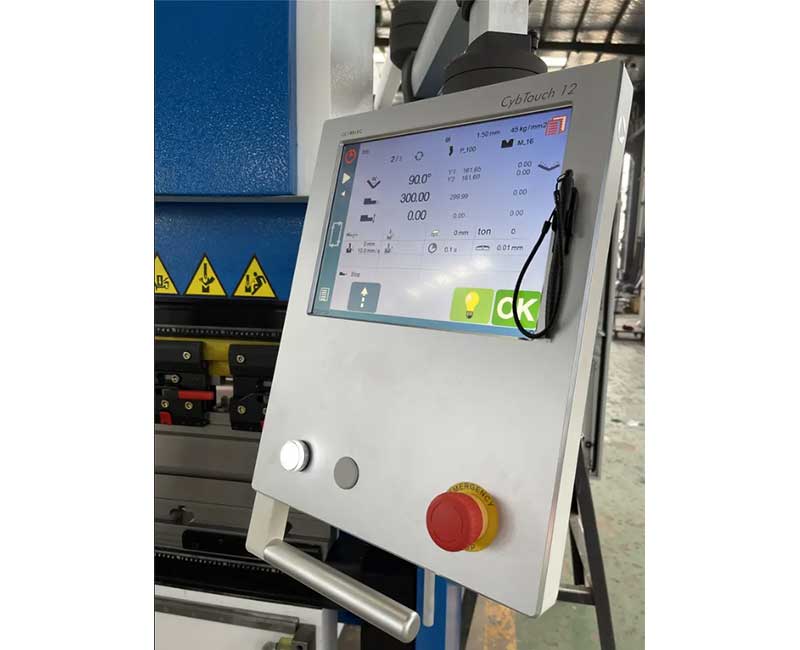

Cybtouch-12 Controller System
- Controls 4 axis.
- Automatic bend sequencing (option).
- Bend allowance calculation.
- Pressure – crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele-maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup.
Highlights
High Efficient Working Table
You can use the whole bending length as there are no interference contours.

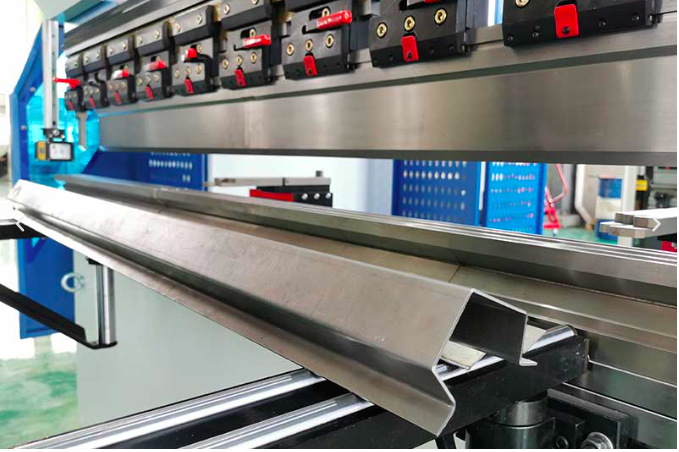

CNC customized mold
Quick Clip
Fast tool changes thanks to vertical set up，to reduce your set up times.

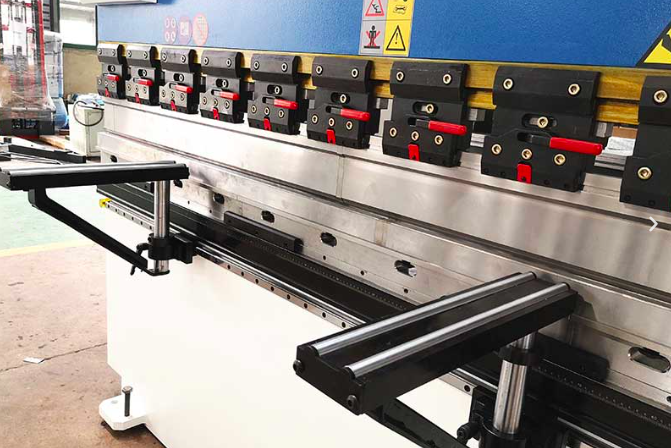

Supporting Arms
The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
Hydraulic Valve (Rexroth from Germany)
GIVI Grating ruler(from Italy)
precise positioning stroke travel
Automatic Crowning System
To give more accurate bending angle
Laser Safe

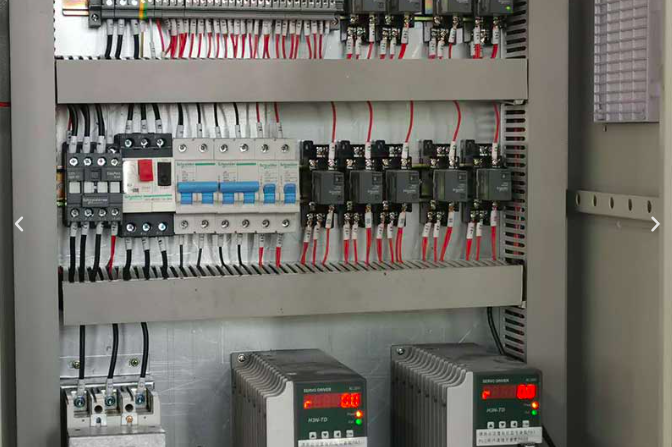

Servo motor drive back gauge
Servo drive back gauge system to increase speed.and energy saving.
The ball screw and linear guide
Dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
Double linear guides and integrated support beam
To improve finger movement accuracy.
Back stop system
√ Y1+Y2+X(optional)
√ Y1+Y2+X+R(optional)
√ Y1+Y2+X+R+Z1+Z2(optional)
√ Y1+Y2+X+R+Z1+Z2+X1(optional)
√ Y1+Y2+X1+X2+R1+R2+Z1+Z2(optional)
√ Y1+Y2+X1+X2+R1+R2+Z1+Z2+V(optional)
Technical specifications
Model | Bending pressure (kn) | Bending length (mm) A | Distance between columns (mm) B | Throat depth (mm) D | Slider travel (mm) C | Maximum opening height (mm) E | X axis maximum distance (mm) | Front Sliding Support Arms (Parts) | Back stop (PCS) | Main motor (kw) | Length x Width x Height (mm) | Weight (T) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
30 tons/1600 | 300 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1620 | 2000 |
40 tons/1600 | 400 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1820 | 2500 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2200_1200*1900 | 2750 |
40 tons/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1200x1900 | 3000 |
50 tons/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500*1200*2000 | 3400 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1300x2210 | 4000 |
| 63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 500 | 2 | 3 | 5.5 | 3200x1300x2210 | 4800 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 500 | 2 | 2 | 7.5 | 2500x1400x2300 | 5000 |
| 80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 500 | 2 | 3 | 7.5 | 3200x1500x2300 | 6000 |
| 80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 500 | 2 | 4 | 7.5 | 4000x1500x2400 | 7000 |
100 tons/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 500 | 2 | 2 | 7.5 | 2500x1600x2400 | 6000 |
100 tons/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 7.5 | 3200x1600x2600 | 6800 |
100 tons/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 7.5 | 4000x1600x2600 | 8000 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 11 | 3200x1600x2600 | 7000 |
| 125T/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 11 | 4000x1600x2600 | 8500 |
| 160T/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1700x2700 | 10000 |
| 160T/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1700x2800 | 11000 |
| 160T/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1900x3100 | 13500 |
| 160T/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6300x1900x3200 | 18500 |
200 tons/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1950x2800 | 11000 |
200 tons/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1950x2800 | 12500 |
200 tons/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1950x3000 | 14000 |
200 tons/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6000x1950x3300 | 20000 |
250 tons/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 18.5 | 3250x2000x3200 | 18500 |
250 tons/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 18.5 | 4000x2000x3400 | 20000 |
250 tons/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 18.5 | 5000x2000x3400 | 23000 |
| 250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 18.5 | 6000x2000x3400 | 27000 |
| 300T/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 22 | 3200x2000x3450 | 20500 |
300 tons/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 22 | 4000x2000x3450 | 22000 |
300 tons/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 22 | 5000x2000x3450 | 25000 |
| 300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 22 | 6000x2000x3450 | 28500 |
| 400T/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 500 | 2 | 3 | 30 | 3200x2180x3400 | 22500 |
| 400T/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 30 | 4000x2180x3400 | 25000 |
400 tons/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 30 | 5000x2180x3500 | 29000 |
| 400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 30 | 6000x2180x3800 | 34000 |
| 500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 45 | 5050x3500x3700 | 42000 |
| 500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 45 | 6050x3500x3700 | 54000 |
| 600T/4000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 500 | 2 | 4 | 55 | 4050x4500x3700 | 44000 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 55 | 6050x4500x3700 | 60000 |
